Technical parameters:
| Product Features | |
|---|---|
| Motion Pattem | Guide Type |
| Control Type | Nomally Closed or Nomally Open |
| Joint Pipe Bore | G1/4"--G1"(NPT) |
| Aperture of Flow Rate | DN13-DN25 |
| Applicable Fluid | Steam |
| fluid viscosity | ≤21?/s |
| Body material: | Brass |
| Seal material | PTFE |
| Fluid temperature | -10~+180℃ |
| Ambient temperature | -10~+50℃ |
| Protection Class | IP65 |

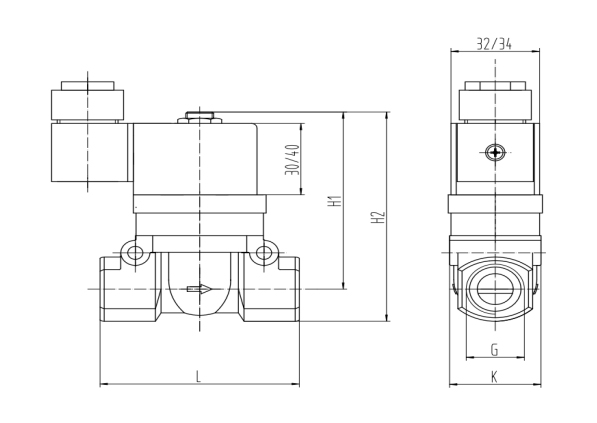

Structure diagram:
| Model | Joint Pipe Bore(G) | DN（mm) | Kv（?/h) | Work-pressure（MPa） | L（mm） | K(mm) | H（mm） |
|---|---|---|---|---|---|---|---|
| 4231008.1440 | G1/4 | 13 | 1.7 | 0.05-1.6 | 72 | 32 | 97 |
| 4231010.1440 | G3/8 | 1.7 | 72 | 32 | 97 | ||
| 4231015.1440 | G1/2 | 1.7 | 72 | 32 | 97 | ||
| 4231020.1440 | G3/4 | 25 | 11 | 92 | 60 | 128 | |
| 4231025.1440 | G1 | 11 | 92 | 60 | 128 | ||
| 4231032.1640 | G11/4 | 40 | 23 | 125 | 92 | 173 | |
| 4231040.1640 | G11/2 | 24 | 125 | 92 | 173 | ||
| 4231050.1640 | G2 | 28 | 129 | 92 | 186 |
